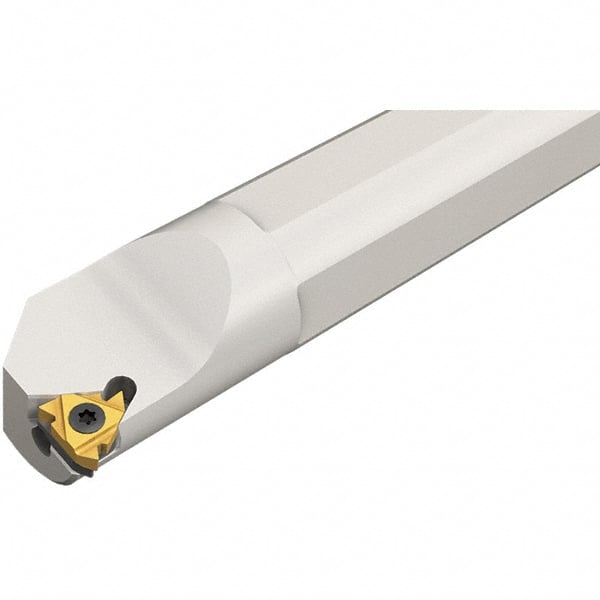

Iscar - Internal Thread, Left Hand Cut, 16mm Shank Width x 16mm Shank Height Indexable Threading Toolholder - 125mm OAL, Various Insert Compatibility, SI Toolholder, Series SIL
Item #: 45383643
Brand: Iscar
Model #: 3800099
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (mm) | 16.00 |
| Shank Height (mm) | 16.00 |
| Overall Length (mm) | 125.00 |
| Insert Compatibility | IR/L-60; IR/L-55; IR/L-ABUT; IR/L-BSPT; IR/L-ISO; IR/L-NPT; IR/L-UN; IR/L-W |
| Series | SIL |
| Toolholder Style | SI |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Center to Cutting Edge (mm) | 6.50 |
| Head Length (mm) | 25.00 |
| Insert Inscribed Circle (mm) | 6.35 |
