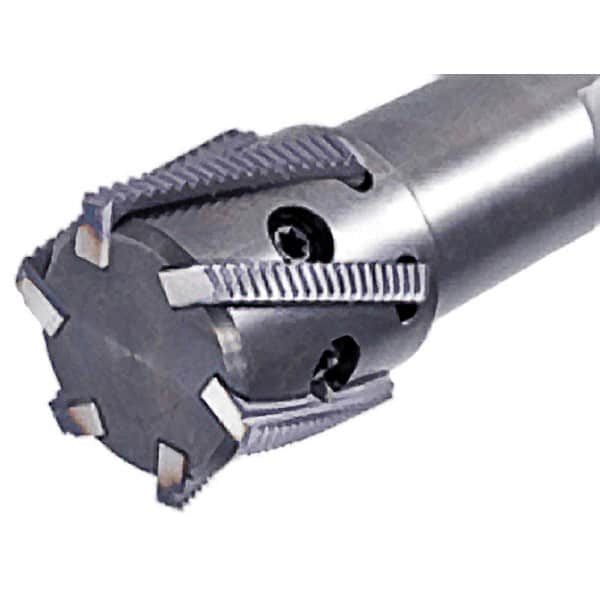

Iscar - 1.26" Cut Diam, 2.36" Max Depth of Cut, 1-1/4" Shank Diam, Internal/External Indexable Thread Mill - Insert Style MTH-BSPT, MTH-F, MTH-ISO, MTH-NPT, MTH-UN, MTH-W, 1.26" Insert Size, 5 Inserts, Toolholder Style MTSRH, 5" OAL
Item #: 45383809
Brand: Iscar
Model #: 3105398
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Hole Depth (Decimal Inch) | 2.3600 |
| Insert Style | MTH-BSPT; MTH-F; MTH-ISO; MTH-NPT; MTH-UN; MTH-W |
| Insert Size (Decimal Inch) | 1.2600 |
| Toolholder Style | MTSRH |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length (Decimal Inch) | 5.0000 |
| Number of Threading Inserts | 5 |
| Thread Type | Internal/External |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
