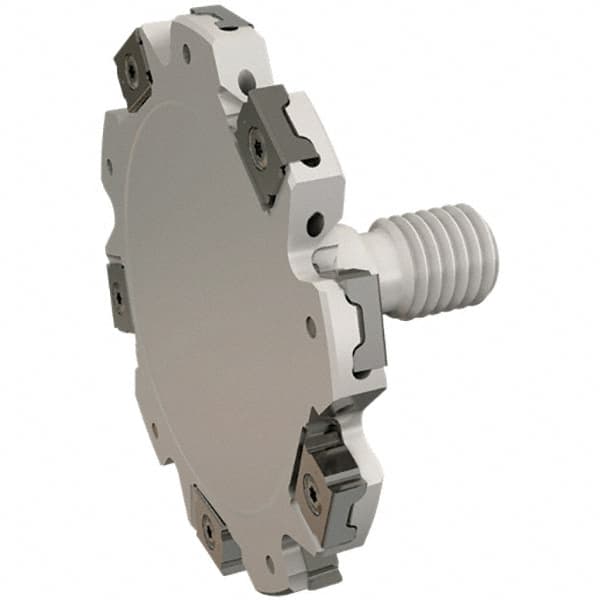

Iscar - Modular Connection Connection, 0.118" Cutting Width, 0.512" Depth of Cut, 40mm Cutter Diam, 6 Tooth Indexable Slotting Cutter - ETS-LN08-M Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 45387057
Brand: Iscar
Model #: 3104050
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 13.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5120 |
| Cutter Diameter (mm) | 40.00 |
| Cutter Diameter (Decimal Inch) | 1.5748 |
| Modular Connection Size | M8 |
| Number of Teeth | 6 |
| Toolholder Style | ETS-LN08-M |
| Series | Mini-TangSlot(ETS-LN08-M) |
| Insert Style | LNET |
| Number of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (mm) | 3.00 |
| Hub Diameter (mm) | 13.00 |
| Hub Diameter (Decimal Inch) | 0.5120 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
