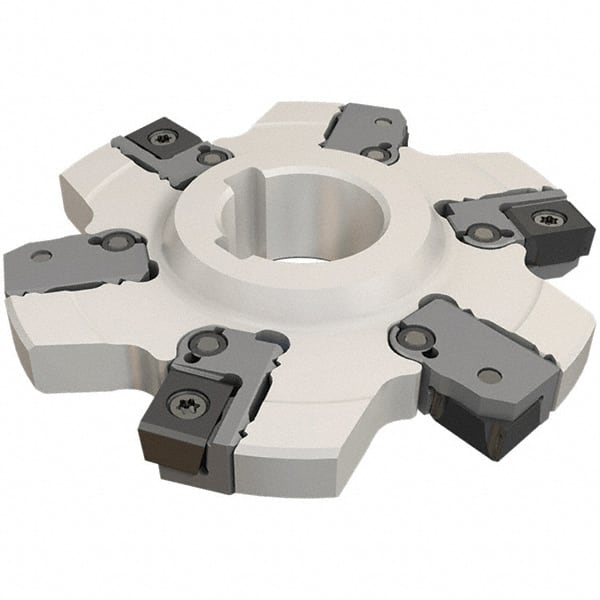

Iscar - Arbor Hole Connection, 0.236" Cutting Width, 25mm Depth of Cut, 100mm Cutter Diam, 27mm Hole Diam, 6 Tooth Indexable Slotting Cutter - SDN Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 45387065
Brand: Iscar
Model #: 3181194
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 25.00 |
| Cutter Diameter (mm) | 100.00 |
| Hole Diameter (mm) | 27.00 |
| Number of Teeth | 6 |
| Toolholder Style | SDN |
| Series | TangSlot(SDN-CALN12) |
| Insert Style | LNET |
| Number of Cutter Inserts | 3 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Cutting Width (mm) | 8.20 |
| Hub Diameter (mm) | 42.00 |
| Cutting Radius (Inch) | 1/32 |
| Complete Insert Compatibility1 | LNET 1235-30X1-N; LNET 123504-TN; LNET 123508-TN; LNET 123508-TN-MM; LNET 1240-30X1-N; LNET 124004-TN; LNET 124008-TN; LNET 1245-30X1-N; LNET 124504-TN; LNET 124508-TN |
