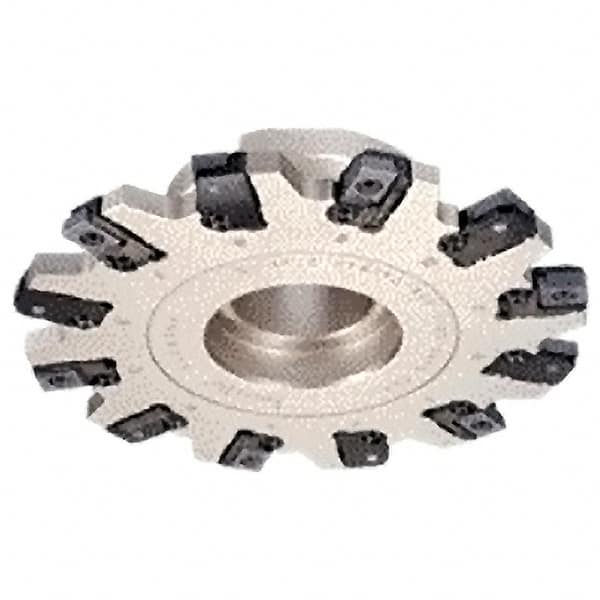

Iscar - Shell Mount Connection, 0.413" Cutting Width, 44mm Depth of Cut, 160mm Cutter Diam, 40mm Hole Diam, 12 Tooth Indexable Slotting Cutter - FDN-CALN12 Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 45387073
Brand: Iscar
Model #: 3103993
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Shell Mount |
| Cutting Width (Decimal Inch) | 0.4130 |
| Maximum Depth of Cut (mm) | 44.00 |
| Cutter Diameter (mm) | 160.00 |
| Hole Diameter (mm) | 40.00 |
| Number of Teeth | 12 |
| Toolholder Style | FDN-CALN12 |
| Series | TangMill(FDN-CALN15) |
| Insert Style | LNET |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Minimum Cutting Width (Decimal Inch) | 0.4130 |
| Maximum Cutting Width (mm) | 14.60 |
| Hub Diameter (mm) | 80.00 |
| Cutting Radius (Inch) | 1/32 |
| Complete Insert Compatibility1 | LNET 1235-30X1-N; LNET 123504-TN; LNET 123508-TN; LNET 123508-TN-MM; LNET 1240-30X1-N; LNET 124004-TN; LNET 124008-TN; LNET 1245-30X1-N; LNET 124504-TN; LNET 124508-TN |
