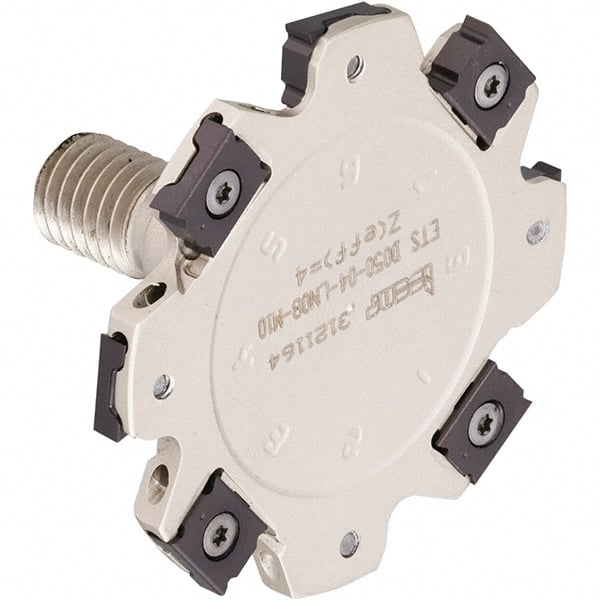

Iscar - Modular Connection Connection, 0.118" Cutting Width, 0.6102" Depth of Cut, 50mm Cutter Diam, 8 Tooth Indexable Slotting Cutter - ETS-LN08-M Toolholder, LNET Insert, Right Hand Cutting Direction
Item #: 45387214
Brand: Iscar
Model #: 3181200
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Modular Connection |
| Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Depth of Cut (mm) | 15.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.6102 |
| Cutter Diameter (mm) | 50.00 |
| Cutter Diameter (Decimal Inch) | 1.9685 |
| Modular Connection Size | M10 |
| Number of Teeth | 8 |
| Toolholder Style | ETS-LN08-M |
| Series | Mini-TangSlot FlexFit (ETS-LN08-M) |
| Insert Style | LNET |
| Number of Cutter Inserts | 4 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Minimum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (Decimal Inch) | 0.1180 |
| Maximum Cutting Width (mm) | 3.00 |
| Hub Diameter (mm) | 18.00 |
| Hub Diameter (Decimal Inch) | 0.7087 |
| Cutting Radius (Inch) | 1/64 |
| Complete Insert Compatibility1 | LNET 081804-TN-N |
