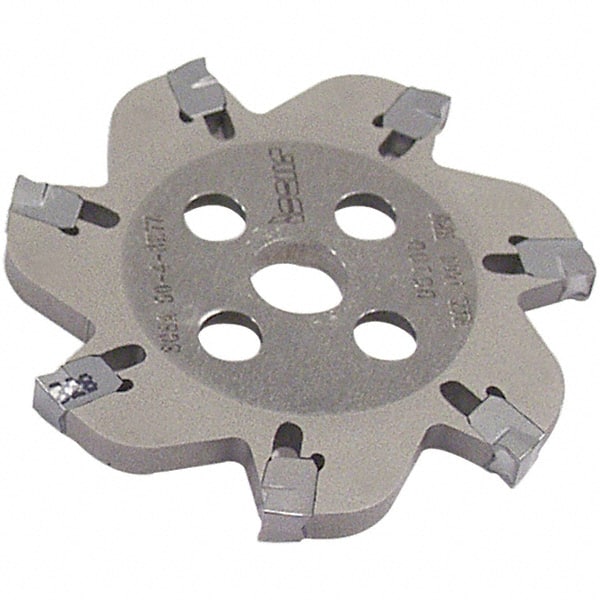

Iscar - Arbor Hole Connection, 0.106" Cutting Width, 0.78" Depth of Cut, 3.94" Cutter Diam, 1" Hole Diam, 12 Tooth Indexable Slotting Cutter - SGSA Toolholder, GSAN 3 Insert, Right Hand Cutting Direction
Item #: 45387412
Brand: Iscar
Model #: 2301850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (Decimal Inch) | 0.7800 |
| Cutter Diameter (Decimal Inch) | 3.9400 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 12 |
| Toolholder Style | SGSA |
| Series | Self-Grip(SGSA) |
| Insert Style | GSAN 3 |
| Staggered Tooth | No |
| Number of Cutter Inserts | 12 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 795 |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (Decimal Inch) | 0.1380 |
| Cutting Radius (Inch) | 1/64 |
| Cutter Body Width (Decimal Inch) | 0.0940 |
| Complete Insert Compatibility1 | GSAN 3 |
