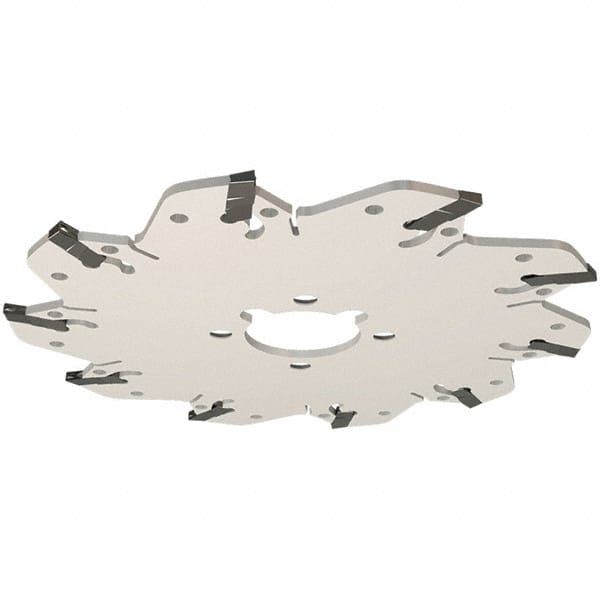

Iscar - Arbor Hole Connection, 0.106" Cutting Width, 34mm Depth of Cut, 125mm Cutter Diam, 32mm Hole Diam, 8 Tooth Indexable Slotting Cutter - GM-DG Toolholder, GIM, GIMY, GIP, GIPA Insert, Right Hand Cutting Direction
Item #: 45387495
Brand: Iscar
Model #: 2301681
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Depth of Cut (mm) | 34.00 |
| Cutter Diameter (mm) | 125.00 |
| Hole Diameter (mm) | 32.00 |
| Number of Teeth | 8 |
| Toolholder Style | GM-DG |
| Series | CutGrip(GM-DG) |
| Insert Style | GIM; GIMY; GIP; GIPA |
| Staggered Tooth | No |
| Number of Cutter Inserts | 8 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Clamp |
| Maximum RPM | 640 |
| Minimum Cutting Width (Decimal Inch) | 0.1060 |
| Maximum Cutting Width (mm) | 3.35 |
| Radius | Yes |
| Cutting Radius (Inch) | 1/16 |
| Cutter Body Width (mm) | 2.40 |
| Complete Insert Compatibility1 | GIM 3; GIM 3J; GIMY 304; GIP 3.00-0.40; GIP 3.00-0.00; GIPA 3.00-1.50-D |
