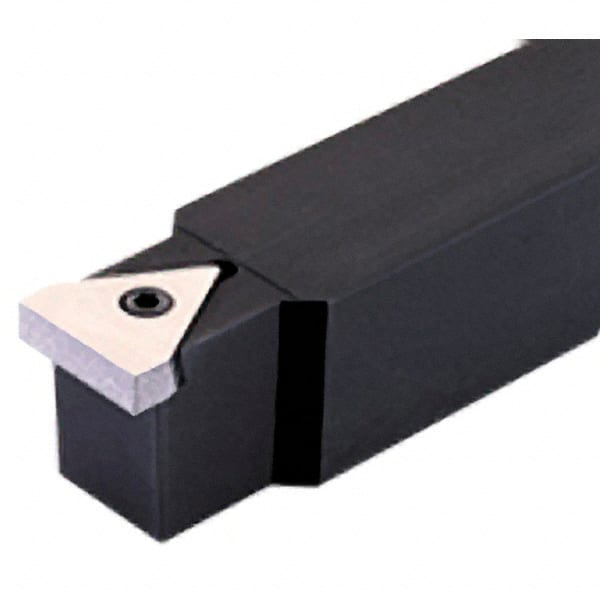

Iscar - XNUW 1305, 90° Lead Angle SXCN External Neutral Indexable Profiling Toolholder - 25mm Shank Height x 25mm Shank Width, 170mm Long
Item #: 45387701
Brand: Iscar
Model #: 2896547
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Neutral |
| Rake | Neutral |
| Insert Compatibility | XNUW 1305 |
| Toolholder Style | SXCN |
| Series | V-Lock |
| Through Coolant | No |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Overall Length (mm) | 170.00 |
| Insert Holding Method | Screw |
| Rake Angle | 0 |
| Lead Angle | 90 |
| Maximum Hole Depth (mm) | 23.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Complete Insert Compatibility | XNUW 1305-05 |
