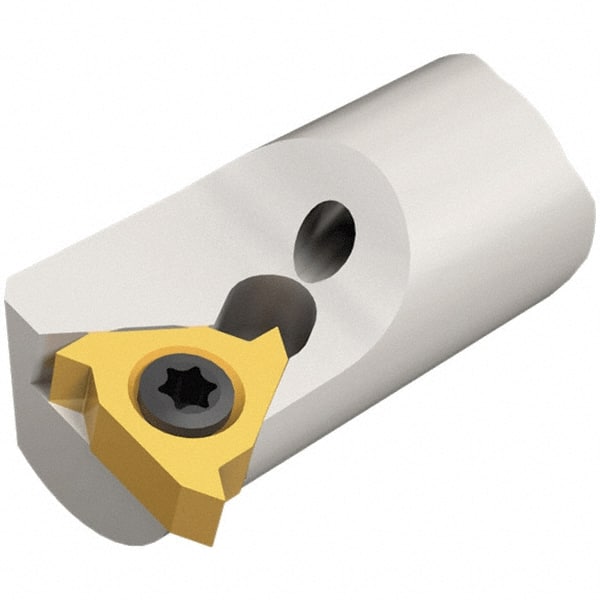

Iscar - Multiple Insert Styles, 37mm Head Length, Right Hand Cut, Internal Modular Threading Cutting Unit Head - System Size E16, 10.3mm Center to Cutting Edge, Series IscarThread

Item #: 45389236
Brand: Iscar
Model #: 3602215
Exact Tooling IR#: 04

Product Specifications

System Size E16

Series Name IscarThread

Thread Type Internal

Cutting Direction Right Hand

Center to Cutting Edge (mm) 10.30

Head Length/Projection (mm) 37.00

Head Length/Projection (Decimal Inch) 1.4560

Insert Style IR-MJ; IR/L-55; IR/L-60; IR/L-ABUT; IR/L-ACME; IR/L-API RD; IR/L-BSPT; IR/L-ISO; IR/L-NPT; IR/L-NPTF; IR/L-PG; IR/L-RND; IR/L-SAGE; IR/L-STACME; IR/L-TR; IR/L-UN; IR/L-UNJ; IR/L-W

Insert Holding Method Screw

Minimum Hole Diameter (mm) 20.00

Axial Rake Angle 1.5

Radial Rake Angle -15
