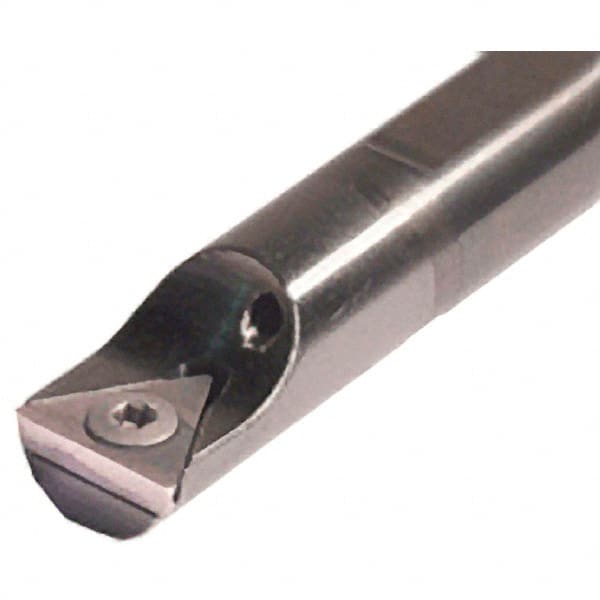

Iscar - 0.689" Min Bore Diam, 8" OAL, 5/8" Shank Diam, E-STFPR Indexable Boring Bar - TP.. 2.. Insert, Screw Holding Method
Item #: 45389293
Brand: Iscar
Model #: 3691291
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Toolholder Style | E-STFPR |
| Series | Isoturn |
| Minimum Bore Diameter (Decimal Inch) | 0.6890 |
| Overall Length (Decimal Inch) | 8.0000 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Insert Compatibility | TP.. 2.. |
| Through Coolant | Yes |
| Multi-Use Tool | No |
| Insert Holding Method | Screw |
| Rake | Neutral |
| Center to Cutting Edge (Decimal Inch) | 0.3500 |
| Insert Thickness (Decimal Inch) | 0.0940 |
| Rake Angle | 0 |
| Complete Insert Compatibility | TPGB 2-1; TPGB 2-1-XL; TPGH 2-1-XL; TPMT 2-0; TPMT 2-1 |
| Toolholder Material | Carbide |
