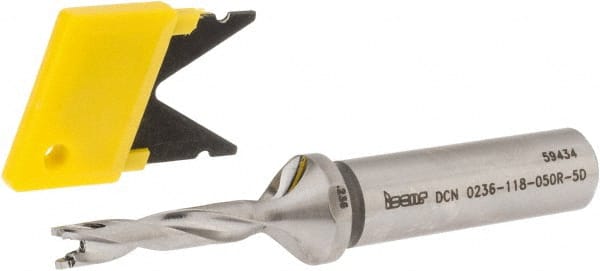

Iscar - 0.236" to 1/4" Diam, 5xD, 1.18" Max Depth, 1/2" Shank Diam, 3-1/2" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 6 Seat Size, 45390069 Toolholder, Series SumoCham
Item #: 45390069
Brand: Iscar
Model #: 3203272
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.2360 |
| Maximum Drill Diameter (Decimal Inch) | 0.2500 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 1.1800 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 6 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.7300 |
| Overall Length (Decimal Inch) | 3.5000 |
| Shank Length (Decimal Inch) | 1.7700 |
