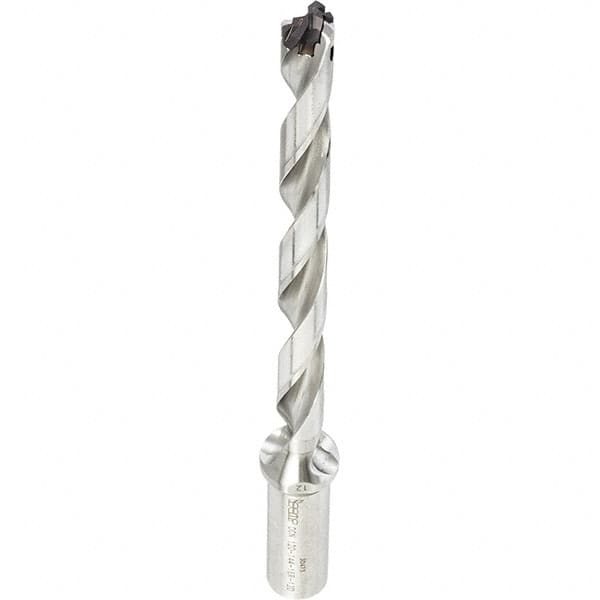

Iscar - 0.532" to 35/64" Diam, 12xD, 6.39" Max Depth, 0.63" Shank Diam, 8.96" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 45390093 Toolholder, Series SumoCham
Item #: 45390093
Brand: Iscar
Model #: 3203237
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.5320 |
| Maximum Drill Diameter (Decimal Inch) | 0.5470 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (Decimal Inch) | 6.3900 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 7.0700 |
| Overall Length (Decimal Inch) | 8.9600 |
| Shank Length (Decimal Inch) | 1.8900 |
