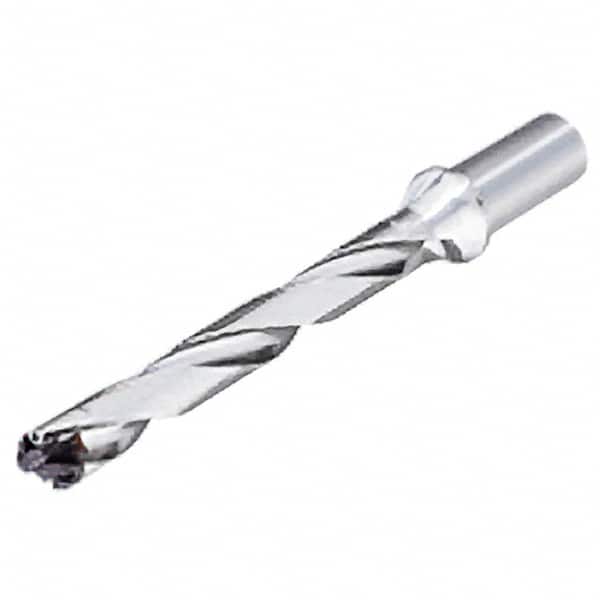

Iscar - 29/64" to 15/32" Diam, 8xD, 3.62" Max Depth, 0.63" Shank Diam, 6.17" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 11 Seat Size, 45390150 Toolholder, Series SumoCham
Item #: 45390150
Brand: Iscar
Model #: 3203217
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.4530 |
| Maximum Drill Diameter (Decimal Inch) | 0.4690 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 3.6200 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 11 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 4.2800 |
| Overall Length (Decimal Inch) | 6.1700 |
| Shank Length (Decimal Inch) | 1.8900 |
