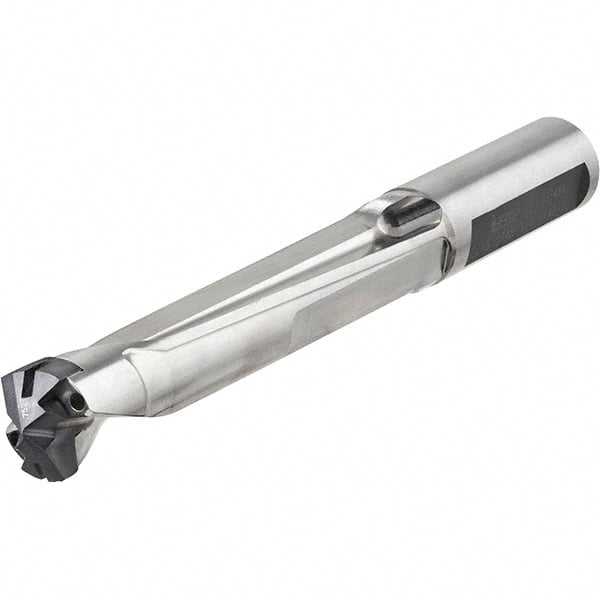

Iscar - 17/32" to 13.9mm Diam, 5xD, 67.5mm Max Depth, 14mm Shank Diam, 127.1mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 45390275 Toolholder, Series UniSumoCham
Item #: 45390275
Brand: Iscar
Model #: 3203064
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 13.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Diameter (mm) | 13.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.5472 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.6575 |
| Maximum Drill Depth (mm) | 67.50 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 84.10 |
| Body Length (Decimal Inch) | 3.3110 |
| Overall Length (mm) | 127.10 |
| Overall Length (Decimal Inch) | 5.0039 |
| Shank Length (mm) | 43.00 |
| Shank Length (Decimal Inch) | 1.6929 |
