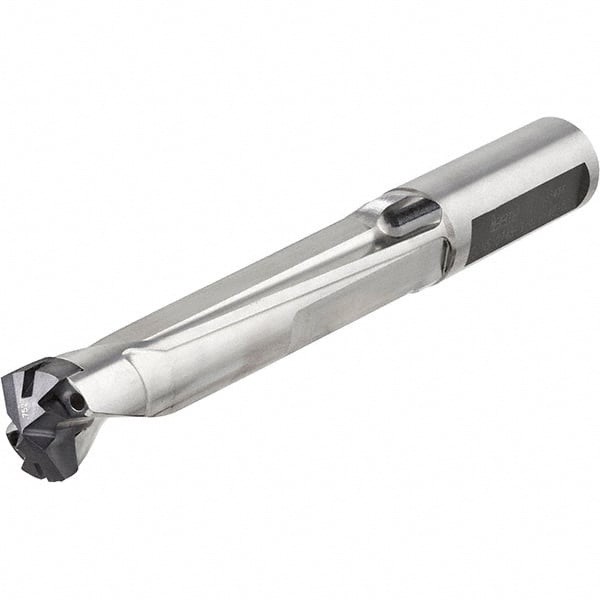

Iscar - 13mm to 13.4mm Diam, 5xD, 65mm Max Depth, 13mm Shank Diam, 5-1/16" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 45390291 Toolholder, Series UniSumoCham
Item #: 45390291
Brand: Iscar
Model #: 3203063
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 13.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5120 |
| Maximum Drill Diameter (mm) | 13.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.5276 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.5591 |
| Maximum Drill Depth (mm) | 65.00 |
| Shank Diameter (mm) | 13.00 |
| Shank Diameter (Decimal Inch) | 0.5120 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 81.60 |
| Body Length (Decimal Inch) | 3.2126 |
| Overall Length (mm) | 128.60 |
| Overall Length (Decimal Inch) | 5.0630 |
| Shank Length (mm) | 47.00 |
| Shank Length (Decimal Inch) | 1.8504 |
