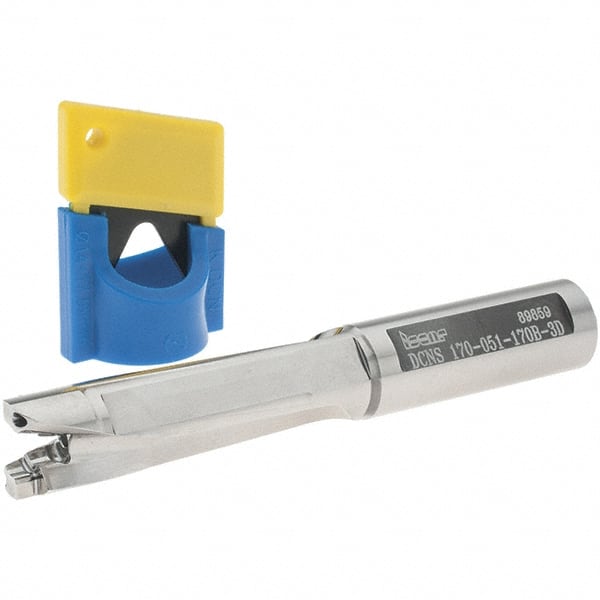

Iscar - 17mm to 17.9mm Diam, 3xD, 51mm Max Depth, 17mm Shank Diam, 119.9mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 17 Seat Size, 45390317 Toolholder, Series UniSumoCham
Item #: 45390317
Brand: Iscar
Model #: 3203020
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 17.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.6693 |
| Maximum Drill Diameter (mm) | 17.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.7047 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 2.0079 |
| Maximum Drill Depth (mm) | 51.00 |
| Shank Diameter (mm) | 17.00 |
| Shank Diameter (Decimal Inch) | 0.6693 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 17 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 71.90 |
| Body Length (Decimal Inch) | 2.8307 |
| Overall Length (mm) | 119.90 |
| Overall Length (Decimal Inch) | 4.7205 |
| Shank Length (mm) | 48.00 |
| Shank Length (Decimal Inch) | 1.8898 |
