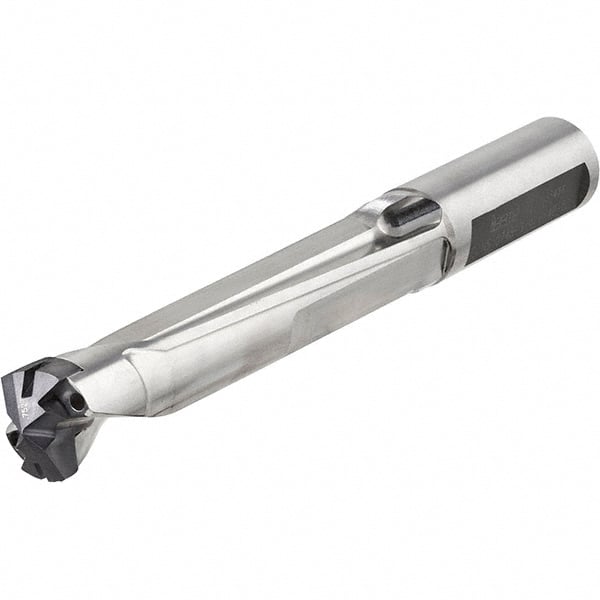

Iscar - 14mm to 14.4mm Diam, 5xD, 70mm Max Depth, 14mm Shank Diam, 131.2mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 14 Seat Size, 45390416 Toolholder, Series UniSumoCham
Item #: 45390416
Brand: Iscar
Model #: 3203065
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 14.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5510 |
| Maximum Drill Diameter (mm) | 14.40 |
| Maximum Drill Diameter (Decimal Inch) | 0.5670 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 2.7559 |
| Maximum Drill Depth (mm) | 70.00 |
| Shank Diameter (mm) | 14.00 |
| Shank Diameter (Decimal Inch) | 0.5510 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 87.20 |
| Body Length (Decimal Inch) | 3.4331 |
| Overall Length (mm) | 131.20 |
| Overall Length (Decimal Inch) | 5.1654 |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7323 |
