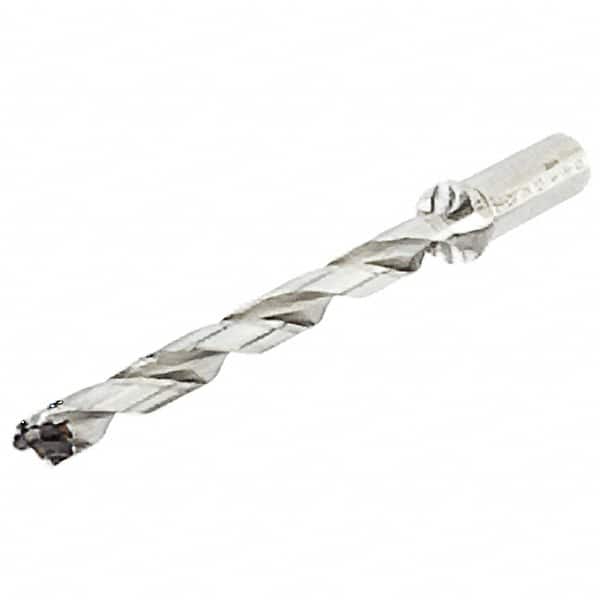

Iscar - 24mm to 24.9mm Diam, 12xD, 288mm Max Depth, 32mm Shank Diam, 386mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 24 Seat Size, 45390507 Toolholder, Series SumoCham
Item #: 45390507
Brand: Iscar
Model #: 3260336
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 24.00 |
| Maximum Drill Diameter (mm) | 24.90 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 288.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 24 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 326.00 |
| Overall Length (mm) | 386.00 |
| Shank Length (mm) | 60.00 |
