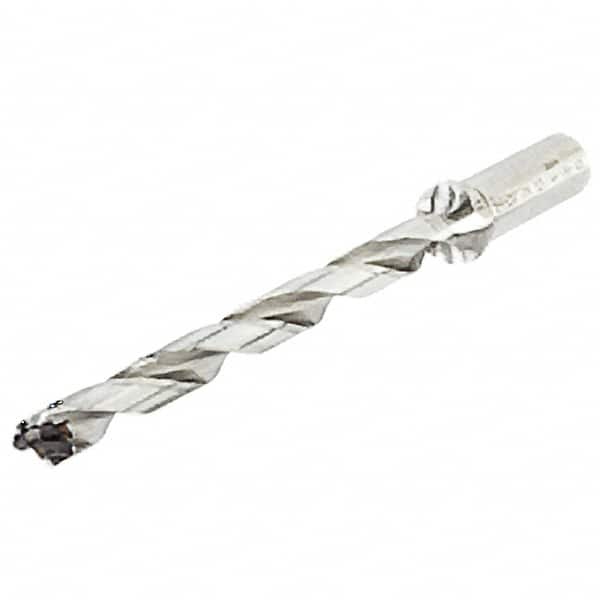

Iscar - 23mm to 23.9mm Diam, 12xD, 276mm Max Depth, 32mm Shank Diam, 362.4mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 23 Seat Size, 45390614 Toolholder, Series SumoCham
Item #: 45390614
Brand: Iscar
Model #: 3202856
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 23.90 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 276.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 23 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 302.40 |
| Overall Length (mm) | 362.40 |
| Shank Length (mm) | 60.00 |
