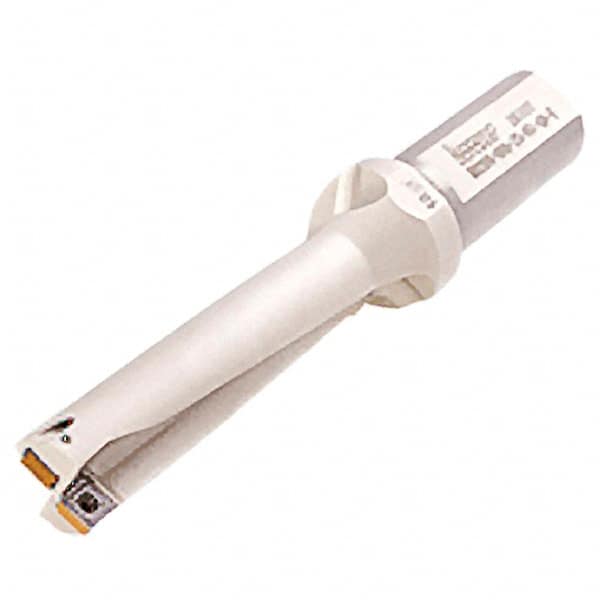

Iscar - 128mm Max Drill Depth, 4xD, 32.9mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Straight Shank
Item #: 45390622
Brand: Iscar
Model #: 3202907
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 32.90 |
| Drill Diameter (Decimal Inch) | 1.2952 |
| Maximum Drill Depth (mm) | 128.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 32.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 219.00 |
| Insert Compatibility | SOMT-DT; SOMT-GF |
| Body Length (mm) | 161.00 |
| Shank Length (mm) | 58.00 |
| Collar Diameter (mm) | 42.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/2-14 |
