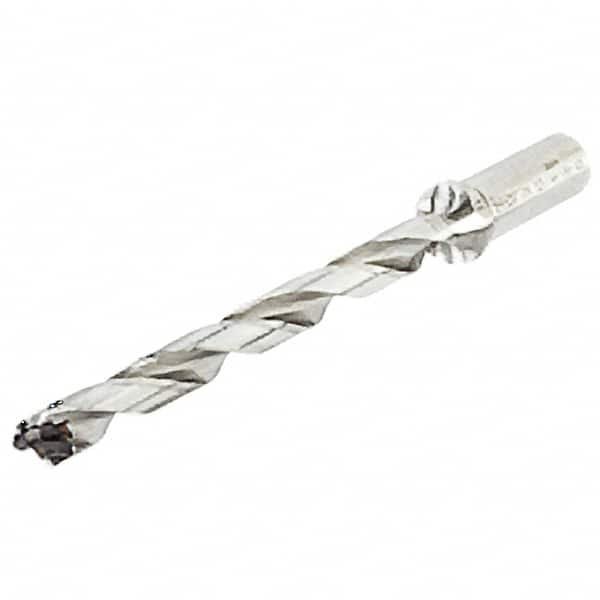

Iscar - 14mm to 14.4mm Diam, 12xD, 168mm Max Depth, 16mm Shank Diam, 236mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 14 Seat Size, 45390747 Toolholder, Series SumoCham
Item #: 45390747
Brand: Iscar
Model #: 3202847
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 14.00 |
| Maximum Drill Diameter (mm) | 14.40 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 168.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 14 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 188.00 |
| Overall Length (mm) | 236.00 |
| Shank Length (mm) | 48.00 |
