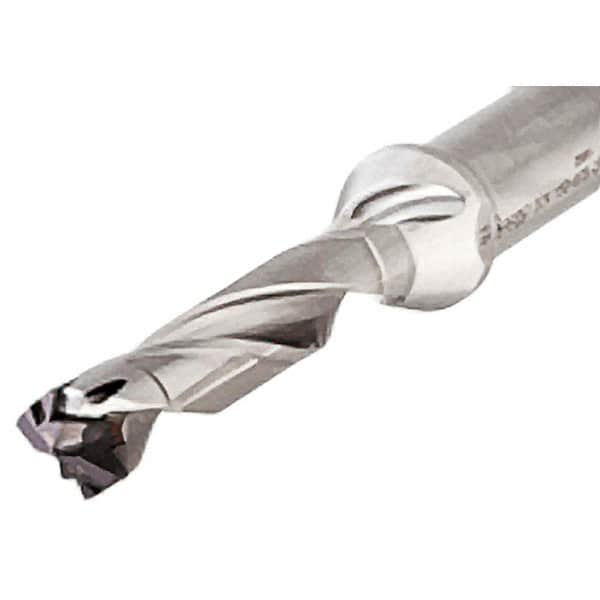

Iscar - 15mm to 15.9mm Diam, 5xD, 75mm Max Depth, 20mm Shank Diam, 148.7mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 15 Seat Size, 45391166 Toolholder, Series SumoCham
Item #: 45391166
Brand: Iscar
Model #: 3202688
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 15.00 |
| Maximum Drill Diameter (mm) | 15.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 75.00 |
| Shank Diameter (mm) | 20.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 15 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 98.70 |
| Overall Length (mm) | 148.70 |
| Shank Length (mm) | 50.00 |
