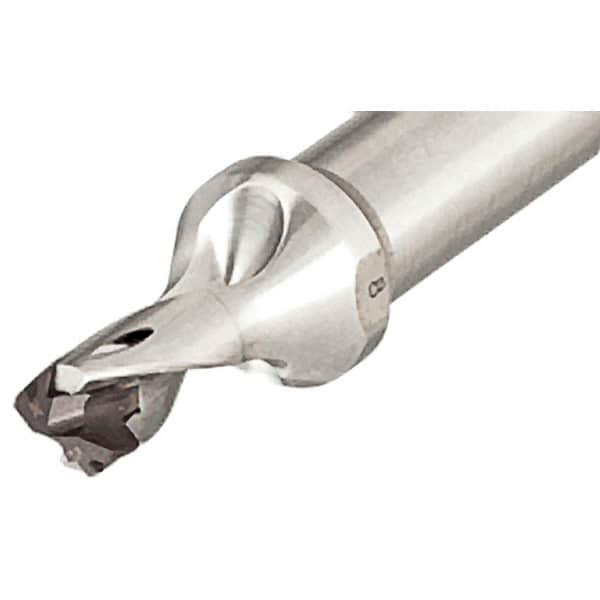

Iscar - 13mm to 13.4mm Diam, 1.5xD, 20mm Max Depth, 16mm Shank Diam, 85.1mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 45391182 Toolholder, Series SumoCham
Item #: 45391182
Brand: Iscar
Model #: 3202681
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (mm) | 13.40 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 37.10 |
| Overall Length (mm) | 85.10 |
| Shank Length (mm) | 48.00 |
