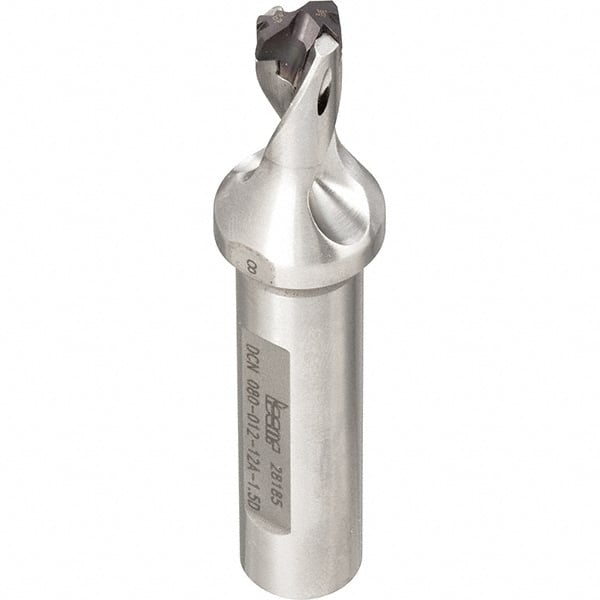

Iscar - 0.315" to 0.331" Diam, 1.5xD, 0.47" Max Depth, 1/2" Shank Diam, 2.87" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 8 Seat Size, 45391307 Toolholder, Series SumoCham
Item #: 45391307
Brand: Iscar
Model #: 3202616
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Diameter (Decimal Inch) | 0.3310 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 0.4700 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 8 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (Decimal Inch) | 1.1000 |
| Overall Length (Decimal Inch) | 2.8700 |
| Shank Length (Decimal Inch) | 1.7700 |
