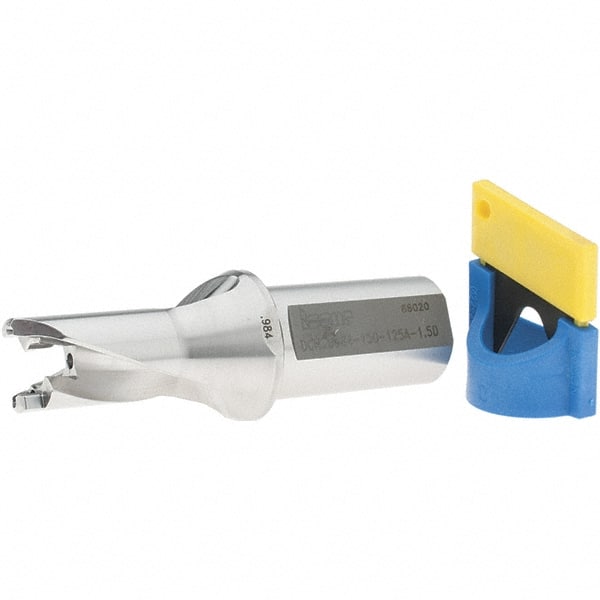

Iscar - 0.984" to 1.02" Diam, 1.5xD, 1-1/2" Max Depth, 1-1/4" Shank Diam, 5.39" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 25 Seat Size, 45391380 Toolholder, Series SumoCham
Item #: 45391380
Brand: Iscar
Model #: 3202604
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.9840 |
| Maximum Drill Diameter (Decimal Inch) | 1.0200 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.5000 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 25 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 3.0300 |
| Overall Length (Decimal Inch) | 5.3900 |
| Shank Length (Decimal Inch) | 2.3600 |
