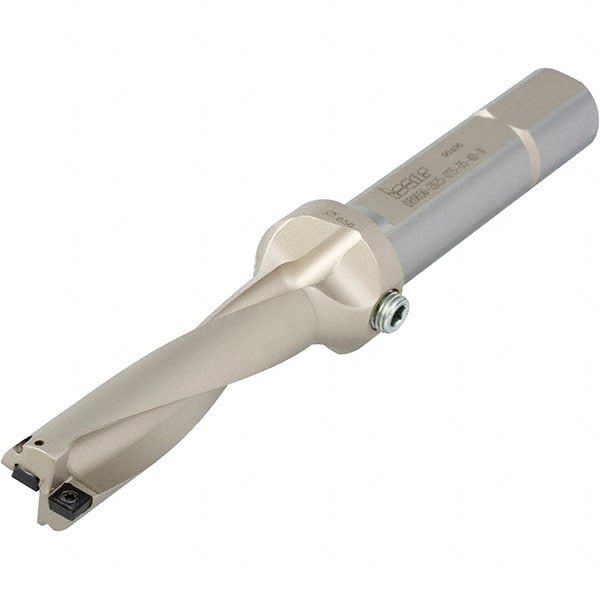

Iscar - 2.89" Max Drill Depth, 5xD, 37/64" Diam, Indexable Insert Drill - 2 Inserts, 3/4" Shank Diam, Straight Shank
Item #: 45391471
Brand: Iscar
Model #: 3202575
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 37/64 |
| Drill Diameter (Decimal Inch) | 0.5780 |
| Maximum Drill Depth (Decimal Inch) | 2.8900 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Shank Diameter (Inch) | 3/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 5xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.6490 |
| Overall Length/Projection (Decimal Inch) | 6.7400 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (Decimal Inch) | 3.7400 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.0900 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | BSP |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | G1/4 |
