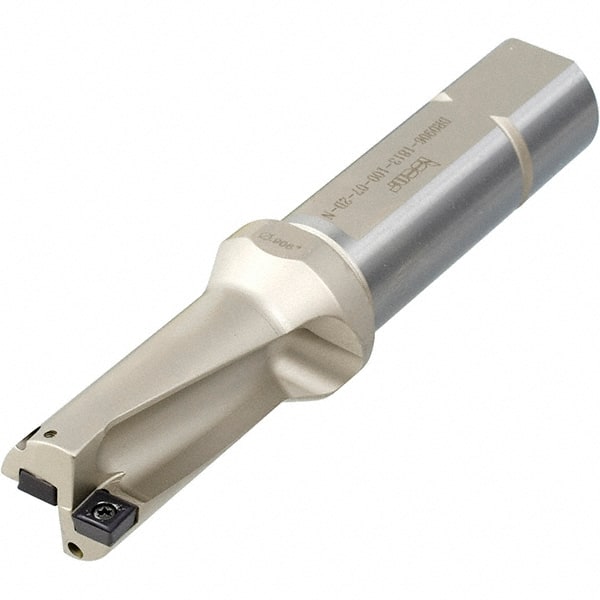

Iscar - 1" Max Drill Depth, 2xD, 1/2" Diam, Indexable Insert Drill - 2 Inserts, 5/8" Shank Diam, Straight Shank
Item #: 45391547
Brand: Iscar
Model #: 3202555
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 1/2 |
| Drill Diameter (Decimal Inch) | 0.5000 |
| Maximum Drill Depth (Decimal Inch) | 1.0000 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Shank Diameter (Inch) | 5/8 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.5090 |
| Overall Length/Projection (Decimal Inch) | 4.7500 |
| Insert Compatibility | AOMT-DT |
| Body Length (Decimal Inch) | 1.7500 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 0.9840 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 1/8-27 |
