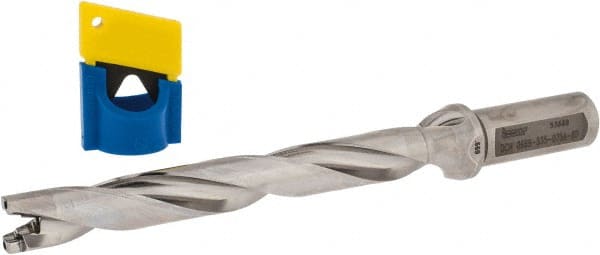

Iscar - 0.669" to 0.705" Diam, 8xD, 5.35" Max Depth, 3/4" Shank Diam, 8.38" OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 17 Seat Size, 45391646 Toolholder, Series SumoCham
Item #: 45391646
Brand: Iscar
Model #: 3202485
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 0.6690 |
| Maximum Drill Diameter (Decimal Inch) | 0.7050 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (Decimal Inch) | 5.3500 |
| Shank Diameter (Decimal Inch) | 0.7500 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 17 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 6.4100 |
| Overall Length (Decimal Inch) | 8.3800 |
| Shank Length (Decimal Inch) | 1.9700 |
