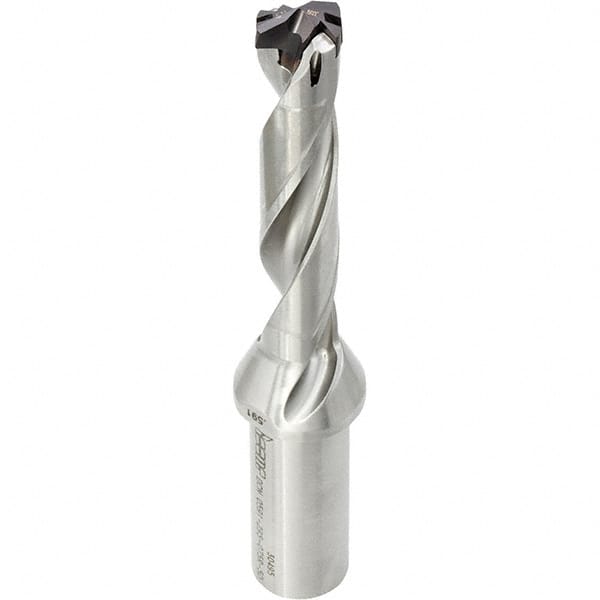

Iscar - 25mm to 25.9mm Diam, 5xD, 125mm Max Depth, 32mm Shank Diam, 224.5mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 25 Seat Size, 45391752 Toolholder, Series SumoCham
Item #: 45391752
Brand: Iscar
Model #: 3202452
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 25.00 |
| Maximum Drill Diameter (mm) | 25.90 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 125.00 |
| Shank Diameter (mm) | 32.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 25 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 164.50 |
| Overall Length (mm) | 224.50 |
| Shank Length (mm) | 60.00 |
