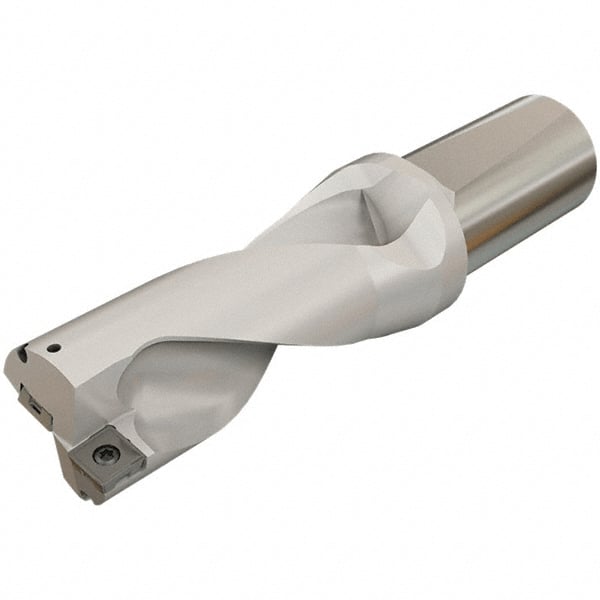

Iscar - 25mm Max Drill Depth, 2xD, 12.5mm Diam, Indexable Insert Drill - 2 Inserts, 16mm Shank Diam, Whistle Notch Shank
Item #: 45391836
Brand: Iscar
Model #: 3202348
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 12.50 |
| Drill Diameter (Decimal Inch) | 0.4921 |
| Maximum Drill Depth (mm) | 25.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 16.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 12.90 |
| Overall Length/Projection (mm) | 91.00 |
| Insert Compatibility | AOMT-DT |
| Body Length (mm) | 43.00 |
| Shank Length (mm) | 48.00 |
| Collar Diameter (mm) | 20.00 |
| Series | DR-TWIST |
