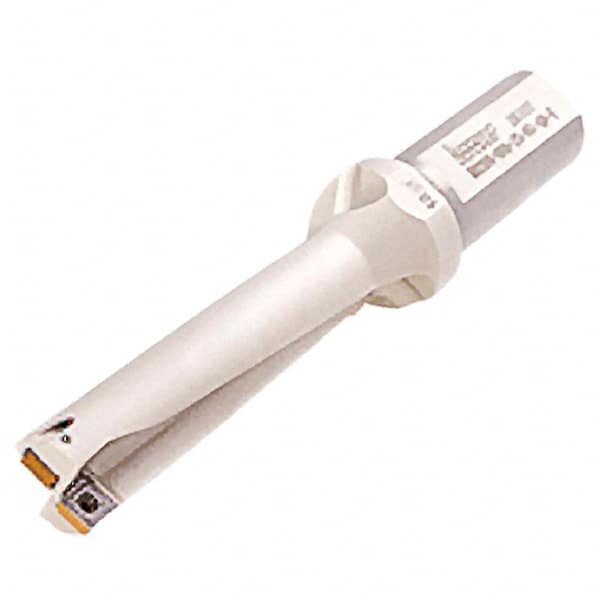

Iscar - 72mm Max Drill Depth, 4xD, 18mm Diam, Indexable Insert Drill - 2 Inserts, 25mm Shank Diam, Straight Shank
Item #: 45391869
Brand: Iscar
Model #: 3202327
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 18.00 |
| Drill Diameter (Decimal Inch) | 0.7087 |
| Maximum Drill Depth (mm) | 72.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 25.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 20.90 |
| Overall Length/Projection (mm) | 150.00 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (mm) | 94.00 |
| Shank Length (mm) | 56.00 |
| Collar Diameter (mm) | 32.00 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
| Shank End Coolant Hole Thread Size (Inch) | 3/8-18 |
