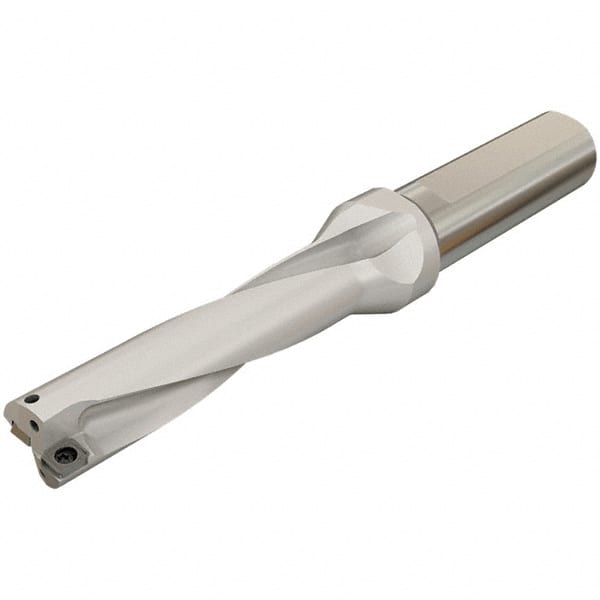

Iscar - 54mm Max Drill Depth, 4xD, 13.5mm Diam, Indexable Insert Drill - 2 Inserts, 16mm Shank Diam, Whistle Notch Shank
Item #: 45391901
Brand: Iscar
Model #: 3202353
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 13.50 |
| Drill Diameter (Decimal Inch) | 0.5315 |
| Maximum Drill Depth (mm) | 54.00 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 16.00 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (mm) | 13.90 |
| Overall Length/Projection (mm) | 120.00 |
| Insert Compatibility | AOMT-DT |
| Body Length (mm) | 72.00 |
| Shank Length (mm) | 48.00 |
| Collar Diameter (mm) | 20.00 |
| Series | DR-TWIST |
