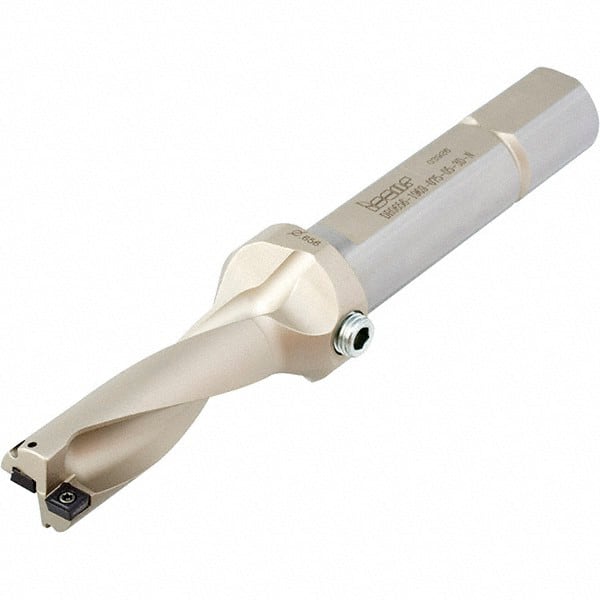

Iscar - 4.31" Max Drill Depth, 3xD, 1-7/16" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 45391992
Brand: Iscar
Model #: 3201850
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (Inch) | 1-7/16 |
| Drill Diameter (Decimal Inch) | 1.4375 |
| Maximum Drill Depth (Decimal Inch) | 4.3100 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 3xD |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.6300 |
| Overall Length/Projection (Decimal Inch) | 8.7700 |
| Insert Compatibility | SOMT-DT; SOMT-GF |
| Body Length (Decimal Inch) | 5.7700 |
| Shank Length (Decimal Inch) | 3.0000 |
| Collar Diameter (Decimal Inch) | 1.9690 |
| Series | DR-TWIST |
| Coolant Hole Thread Type | NPT |
| Body Side Coolant Hole Thread Size (Inch) | 1/16-27 |
