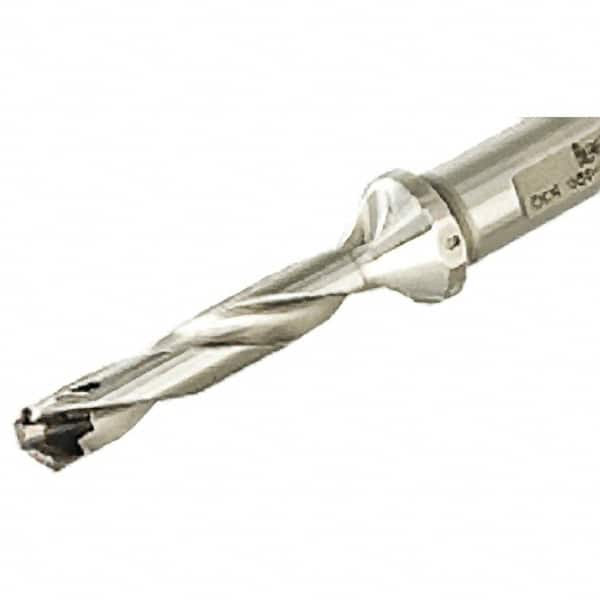

Iscar - 21mm to 21.9mm Diam, 3xD, 63mm Max Depth, 25mm Shank Diam, 152.2mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 21 Seat Size, 45392347 Toolholder, Series SumoCham
Item #: 45392347
Brand: Iscar
Model #: 3260085
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 21.00 |
| Maximum Drill Diameter (mm) | 21.90 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 63.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 21 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 96.20 |
| Overall Length (mm) | 152.20 |
| Shank Length (mm) | 56.00 |
