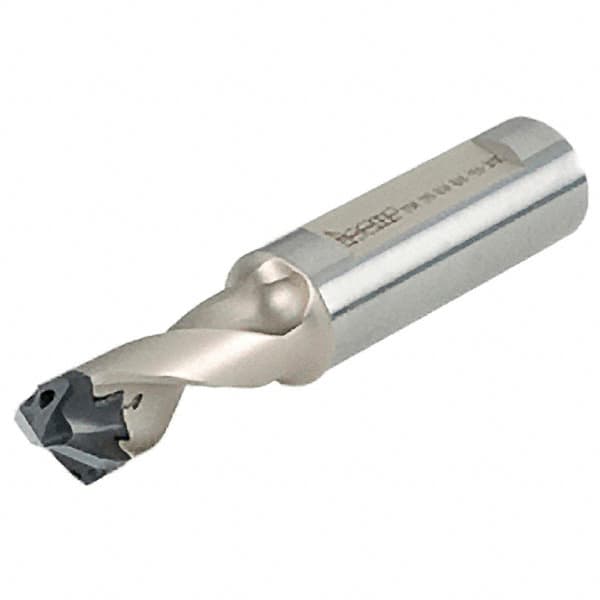

Iscar - 18 to 18.9mm Diam, 1.5xD, 27mm Max Depth, 25mm Shank Diam, 109.4mm OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, 18 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 45392404
Brand: Iscar
Model #: 3201570
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 27.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | IDK; IDM; IDN; IDP |
| Insert Seat Size | 18 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 53.40 |
| Overall Length (mm) | 109.40 |
| Shank Length (mm) | 56.00 |
