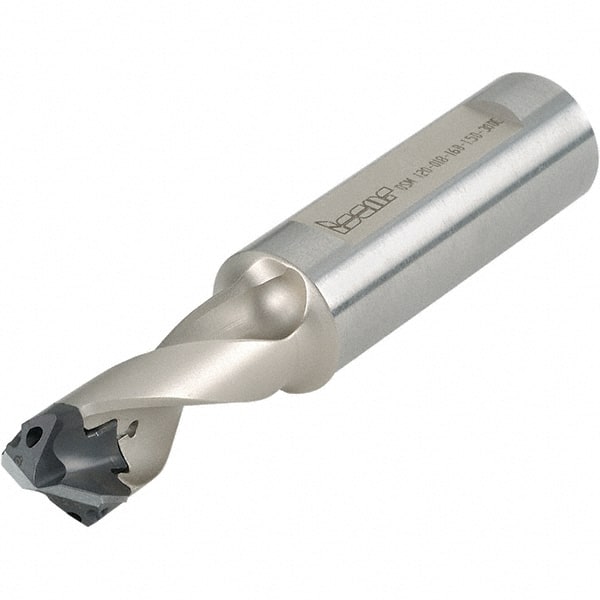

Iscar - 13 to 13.9mm Diam, 1.5xD, 20mm Max Depth, 16mm Shank Diam, 87.6mm OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, 13 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 45392438
Brand: Iscar
Model #: 3201565
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (mm) | 13.90 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 20.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | IDK; IDM; IDN; IDP |
| Insert Seat Size | 13 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 39.60 |
| Overall Length (mm) | 87.60 |
| Shank Length (mm) | 48.00 |
