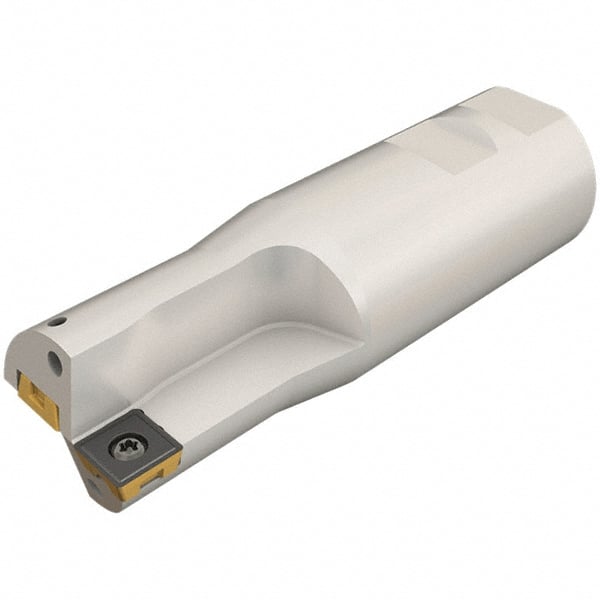

Iscar - 1.13" Max Drill Depth, 1xD, 1-1/8" Diam, Indexable Insert Drill - 2 Inserts, 1-1/4" Shank Diam, Straight Shank
Item #: 45392537
Brand: Iscar
Model #: 3260043
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRM |
| Drill Diameter (Inch) | 1-1/8 |
| Drill Diameter (Decimal Inch) | 1.1250 |
| Maximum Drill Depth (Decimal Inch) | 1.1300 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 3.7700 |
| Insert Compatibility | SOMT-DT; SOMT-GF |
| Body Length (Decimal Inch) | 1.6900 |
| Shank Length (Decimal Inch) | 2.0800 |
| Series | DRDRILLS |
