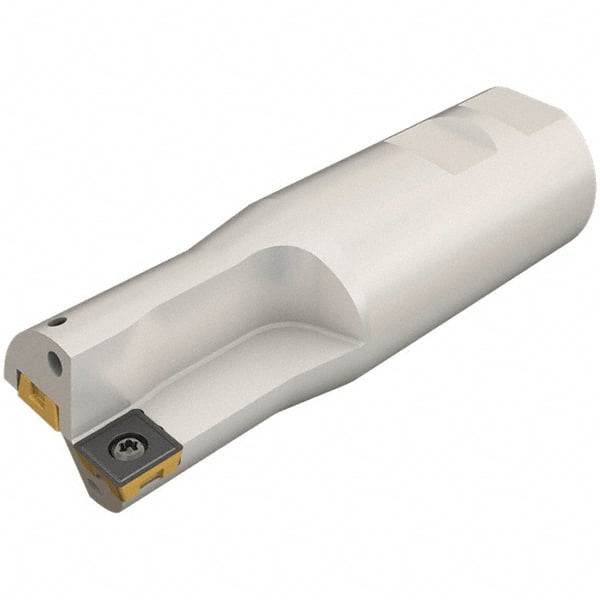

Iscar - 0.88" Max Drill Depth, 1xD, 7/8" Diam, Indexable Insert Drill - 2 Inserts, 1" Shank Diam, Straight Shank
Item #: 45392560
Brand: Iscar
Model #: 3201522
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DRM |
| Drill Diameter (Inch) | 7/8 |
| Drill Diameter (Decimal Inch) | 0.8750 |
| Maximum Drill Depth (Decimal Inch) | 0.8800 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 1xD |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (Decimal Inch) | 3.5900 |
| Insert Compatibility | SOGX-AL; SOMX-DT; SOMX-GF |
| Body Length (Decimal Inch) | 1.3100 |
| Shank Length (Decimal Inch) | 2.2800 |
| Series | DRDRILLS |
