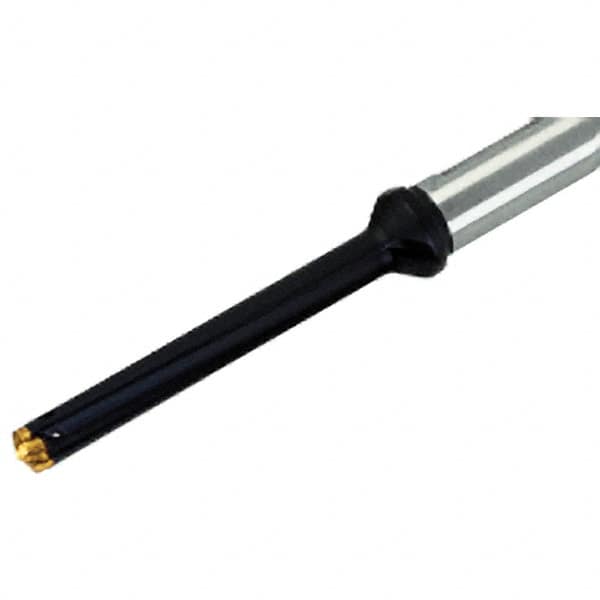

Iscar - 23 to 23.9mm Diam, 8xD, 184mm Max Depth, 25mm Shank Diam, 271.1mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 23 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 45392768
Brand: Iscar
Model #: 3201409
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (mm) | 23.00 |
| Maximum Drill Diameter (mm) | 23.90 |
| Drill Depth by Diameter Ratio | 8xD |
| Maximum Drill Depth (mm) | 184.00 |
| Shank Diameter (mm) | 25.00 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 23 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 215.10 |
| Overall Length (mm) | 271.10 |
| Shank Length (mm) | 56.00 |
