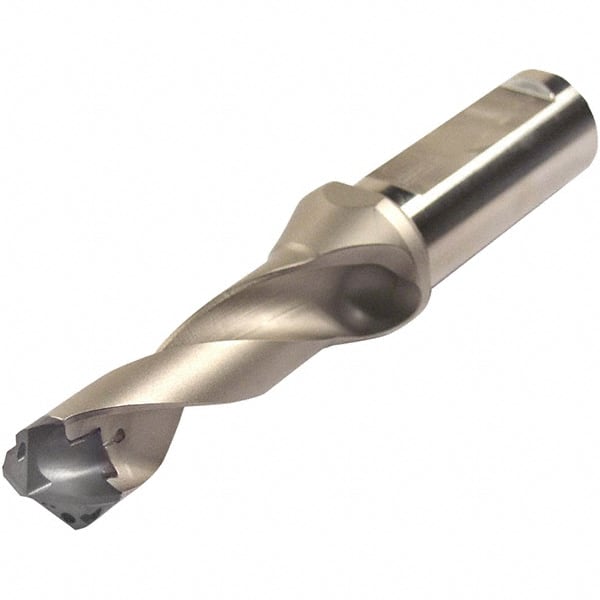

Iscar - 0.709 to 0.744" Diam, 5xD, 3.54" Max Depth, 1" Shank Diam, 6.52" OAL, Replaceable Tip Drill - IDK, IDM, IDN, IDP Insert, 18 Seat Size, DSM Toolholder, Series ChamDrillJet
Item #: 45393212
Brand: Iscar
Model #: 3201080
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrillJet |
| Minimum Drill Diameter (Decimal Inch) | 0.7090 |
| Maximum Drill Diameter (Decimal Inch) | 0.7440 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 3.5400 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Style | IDK; IDM; IDN; IDP |
| Insert Seat Size | 18 |
| Toolholder Style | DSM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 4.3200 |
| Overall Length (Decimal Inch) | 6.5200 |
| Shank Length (Decimal Inch) | 2.2000 |
