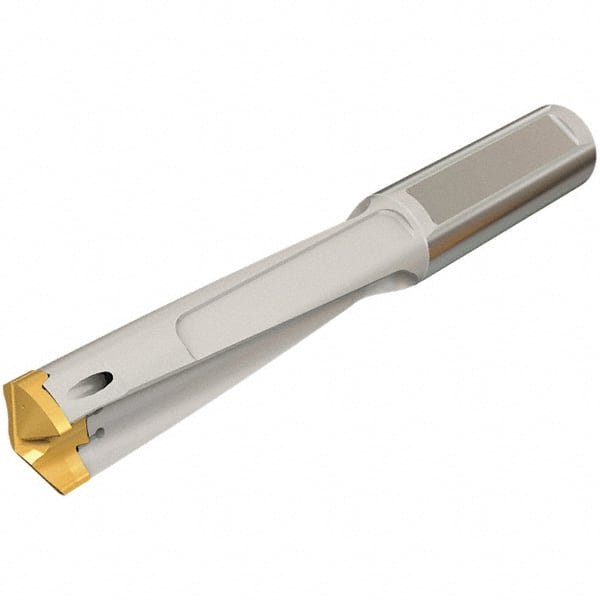

Iscar - 14.5 to 14.9mm Diam, 3.5xD, 50mm Max Depth, 15mm Shank Diam, 105.9mm OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 14 Seat Size, DCM Toolholder, Series UniChamDrill
Item #: 45393253
Brand: Iscar
Model #: 3200982
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniChamDrill |
| Minimum Drill Diameter (mm) | 14.50 |
| Minimum Drill Diameter (Decimal Inch) | 0.5710 |
| Maximum Drill Diameter (mm) | 14.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.5866 |
| Drill Depth by Diameter Ratio | 3.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.9685 |
| Maximum Drill Depth (mm) | 50.00 |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 14 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 60.90 |
| Body Length (Decimal Inch) | 2.3976 |
| Overall Length (mm) | 105.90 |
| Overall Length (Decimal Inch) | 4.1693 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
