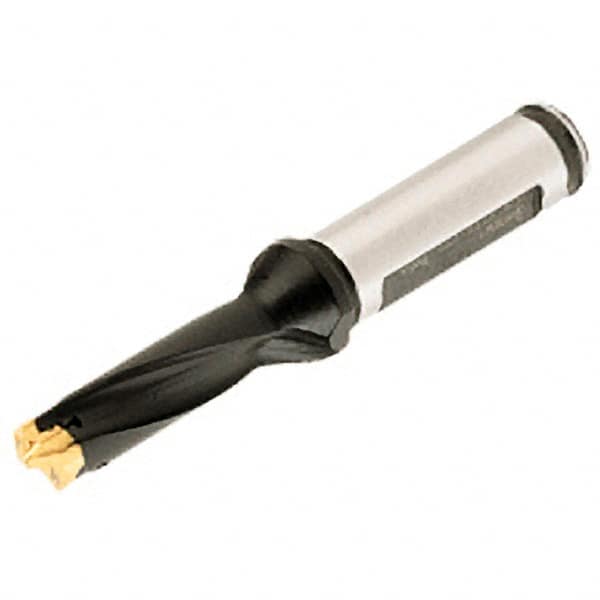

Iscar - 0.295 to 0.311" Diam, 3xD, 0.87" Max Depth, 1/2" Shank Diam, 3.07" OAL, Replaceable Tip Drill - IDI-SG, IDI-SK Insert, 8 Seat Size, DCM Toolholder, Series ChamDrill
Item #: 45393295
Brand: Iscar
Model #: 3200762
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | ChamDrill |
| Minimum Drill Diameter (Decimal Inch) | 0.2950 |
| Maximum Drill Diameter (Decimal Inch) | 0.3110 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 0.8700 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Insert Style | IDI-SG; IDI-SK |
| Insert Seat Size | 8 |
| Toolholder Style | DCM |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 1.3000 |
| Overall Length (Decimal Inch) | 3.0700 |
| Shank Length (Decimal Inch) | 1.7700 |
