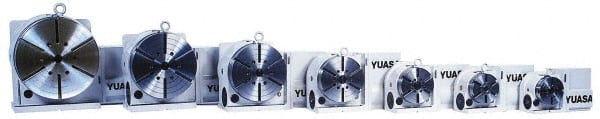

Yuasa - 1 Spindle, 75 Max RPM, 6.69" Table Diam, 0.53 hp, Horizontal & Vertical CNC Rotary Indexing Table - 80 kg (180 Lb) Max Horiz Load, 130.05mm Centerline Height - Exact Tooling

Yuasa - 1 Spindle, 75 Max RPM, 6.69" Table Diam, 0.53 hp, Horizontal & Vertical CNC Rotary Indexing Table - 80 kg (180 Lb) Max Horiz Load, 130.05mm Centerline Height


Item #: 45405727
Brand: Yuasa
Model #: DMNC-170
Exact Tooling IR#: 04

Product Specifications
Indexer Type Rotary Table
Number of Spindles 1
Maximum RPM 75
Table Diameter (Decimal Inch) 6.6900
Setting Position Horizontal; Vertical
Maximum Horizontal Load Capacity (Lb.) 180
Maximum Horizontal Load Capacity (kg) 80
Maximum Vertical Load Capacity (Lb.) 90
Maximum Vertical Load Capacity (kg) 40
Sub Table Outside Diameter (mm) 169.93
Sub Table Outside Diameter (Decimal Inch) 6.6900
Centerline Height (mm) 130.05
Centerline Height (Decimal Inch) 5.1200
Through Hole Size (mm) 44.96
Through Hole Size (Decimal Inch) 1.7700
Table Torque (Ft/Lb) 165.00
Table Torque (kg-m) 22.81
Pneumatic Brake Torque (Ft/Lb) 110
Pneumatic Brake Torque (kg-m) 15.00
Hydraulic Brake Torque (Ft/Lb) 217
Hydraulic Brake Torque (kg-m) 30
Resolution (Decimal Inch) 0.0008
Positioning Accuracy (sec.) 10.00
Repeatability (sec.) 2.00
Bore Inside Diameter (mm) 41.91
Bore Inside Diameter (Decimal Inch) 1.6500
Threaded Inside Diameter M36x3.0
Gear Ratio 60:1
Spindle Runout (mm) 0.15
Spindle Runout (Decimal Inch) 0.006000
Number of T-Slots 6
Motor Type AC Servo
Voltage 105 to 240
Horsepower (HP) 0.53
Includes Locating Keys; Operators' Manual; Power Supply; Remote Cable; T-Slotted Face Plate; UDNC-M1 Controller; Warranty Card
$ 14,204.85
