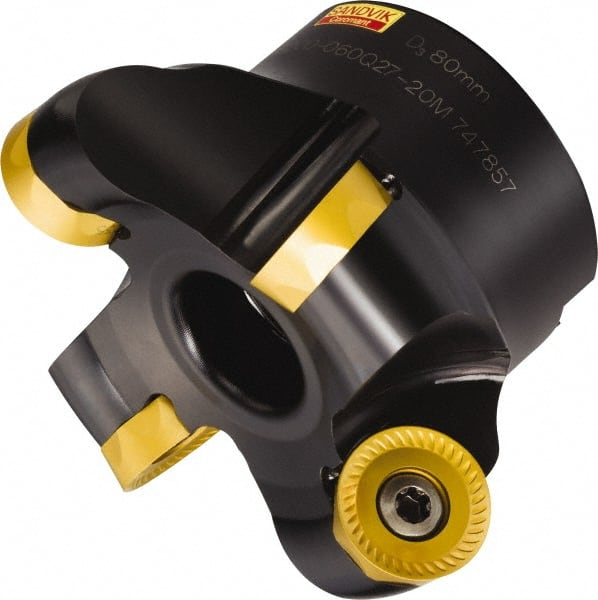

Sandvik Coromant - 1-1/2" Cut Diam, 6.35mm Max Depth, 3/4" Arbor Hole, 5 Inserts, RCKT 13 04 00 Insert Style, Indexable Copy Face Mill - RA200 Cutter Style, 50mm High, Series CoroMill 200
Item #: 45413861
Brand: Sandvik Coromant
Model #: 5739065
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-1/2 |
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (mm) | 6.35 |
| Maximum Depth of Cut (Decimal Inch) | 0.2500 |
| Arbor Hole Diameter (Inch) | 3/4 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Series | CoroMill 200 |
| Number of Cutter Inserts | 5 |
| Insert Compatibility | RCKT 13 04 00 |
| Cutter Style | RA200 |
| Through Coolant | No |
| Insert Holding Method | Screw |
| Insert Inscribed Circle (mm) | 13.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5118 |
| Keyway Width (Decimal Inch) | 0.3209 |
| Cutting Direction | Right Hand |
| Counterbore Diameter (Decimal Inch) | 0.7500 |
| Complete Insert Compatibility | RCKT 13 04 00 |
| Overall Diameter (Decimal Inch) | 2.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 2.000 |
| ISO Number | RA200-038R19-13H-HD |
