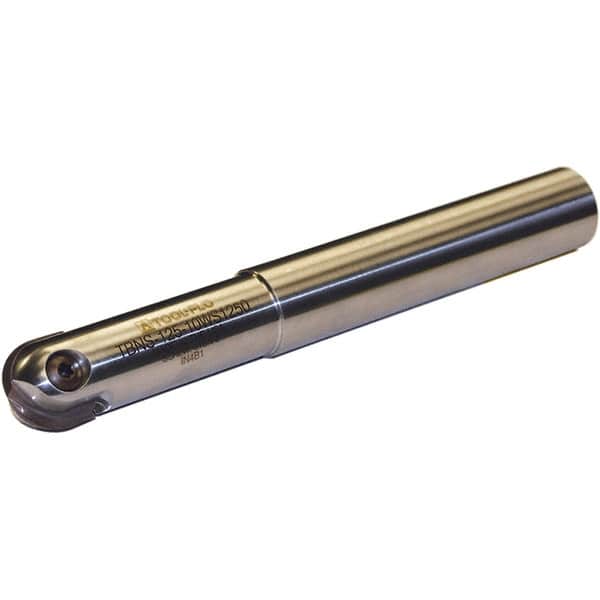

Tool-Flo - 1-5/8" Cut Diam, 1-5/8" Shank Diam, 12" OAL, Indexable Ball Nose End Mill - 4" Head Length, Straight Shank, TBN Toolholder, TBNR 1625, TBRR 1625 Insert
Item #: 45417888
Brand: Tool-Flo
Model #: TBNS16212WS1625
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 1-5/8 |
| Cutting Diameter (Decimal Inch) | 1.6250 |
| Shank Type | Straight Shank |
| Shank Diameter (Inch) | 1-5/8 |
| Shank Diameter (Decimal Inch) | 1.6250 |
| Number of Ball Nose Inserts Used on Toolholder | 1 |
| Insert Style | TBNR 1625; TBRR 1625 |
| Toolholder Style | TBN |
| Series | Rigid-Lock |
| Overall Length (Decimal Inch) | 12.0000 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Head Length (Decimal Inch) | 4.0000 |
| Neck Diameter (Decimal Inch) | 1.3750 |
