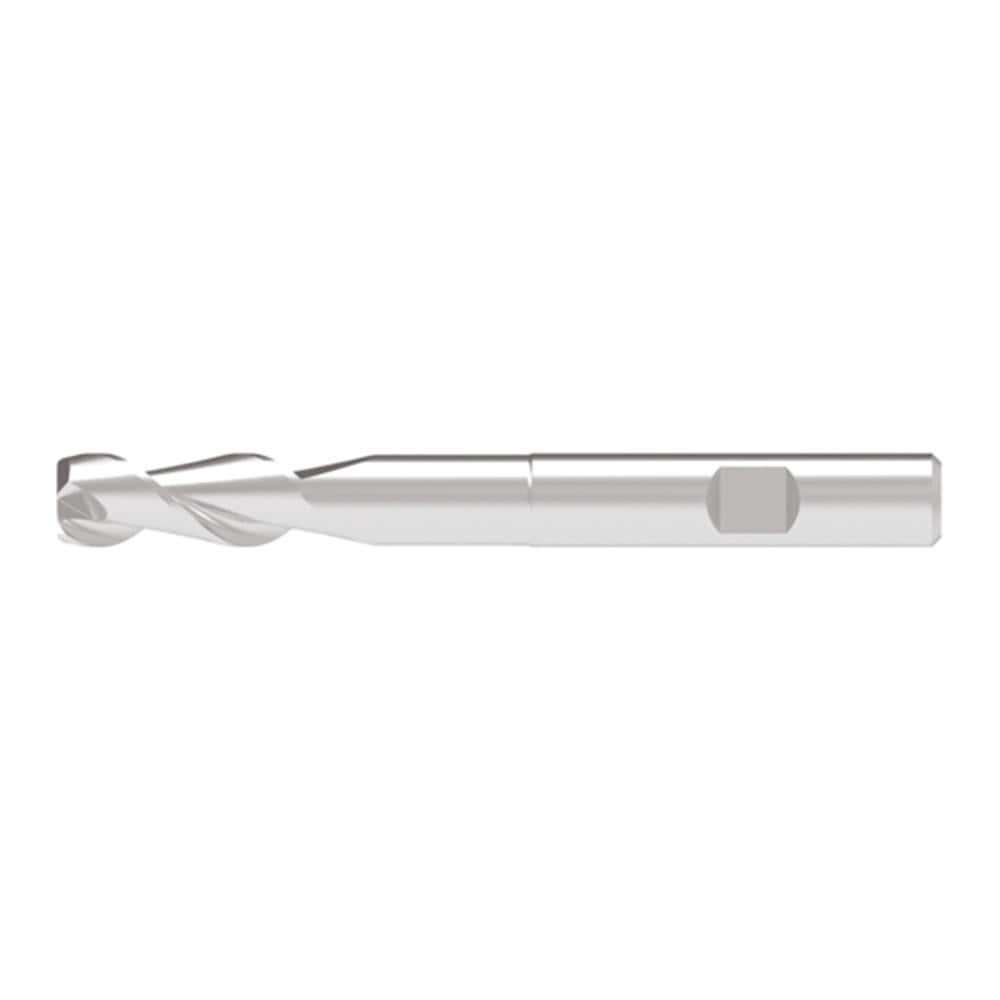

Corner Chamfer End Mill: 11.50 mm Dia, 31.00 mm LOC, 2 Flute, 0.10 mm Chamfer Width, Solid Carbide
Item #: 04935151
Brand: WNT
Model #: 5363011800
Product Specifications
| Mill Diameter (mm) | 11.50 |
| Number Of Flutes | 2 |
| Length of Cut (mm) | 31.00 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Centercutting | No |
| Flute Direction | Right Hand |
| Variable Index | No |
| Variable Helix | Yes |
| Cutting Direction | Right Hand |
| Chamfer Width (mm) | 0.10 |
| Overall Length (mm) | 109.00 |
| Coolant Through | No |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Medium |
| Flute Type | Variable |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 12.00 |
| Neck Diameter (mm) | 11.100 |
| UNSPSC Code | 23241614 |
| Series | 53630 |
