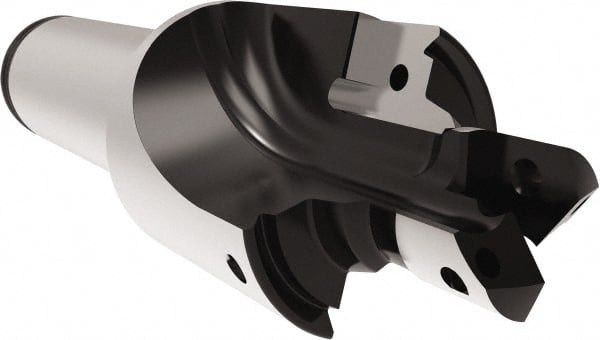

Allied Machine and Engineering - M12x1.50, 0.413" Pilot Diam, 0.945" Spotface Diam, 0.556" Pilot Length, Tube Dash 4, Indexable Porting Tool
Item #: 45453867
Brand: Allied Machine and Engineering
Model #: I6149-04RY-16FM
Product Specifications
| Port Standard Designation | ISO 6149-1:1993; SAE J2244-1 |
| Pilot Insert Type | Spade Blade Insert |
| Port Thread Size | M12x1.50 |
| Tube Dash Number | 4 |
| Pilot Diameter (Decimal Inch) | 0.4130 |
| Spotface Diameter (Decimal Inch) | 0.9450 |
| Pilot Length (Decimal Inch) | 0.5560 |
| Shank Diameter (Inch) | 0.6300 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Number of Porting Inserts | 2 |
| Porting Insert Style | I6149-04-C3H; I6149-04-C5A; I6149-04R-C3H; I6149-04R-C5A |
| Porting Diameter (Decimal Inch) | 0.5440 |
| Overall Length (Decimal Inch) | 3.1770 |
| Through Coolant | Through Coolant |
| Porting Angle | 15 |
| Porting Angle Length (Decimal Inch) | 0.1020 |
| Head Length (Decimal Inch) | 1.5270 |
| Shank Length (Decimal Inch) | 1.6500 |
| Spotface to Shoulder Length (Decimal Inch) | 0.8760 |
| Series | AccuPort 432 |
