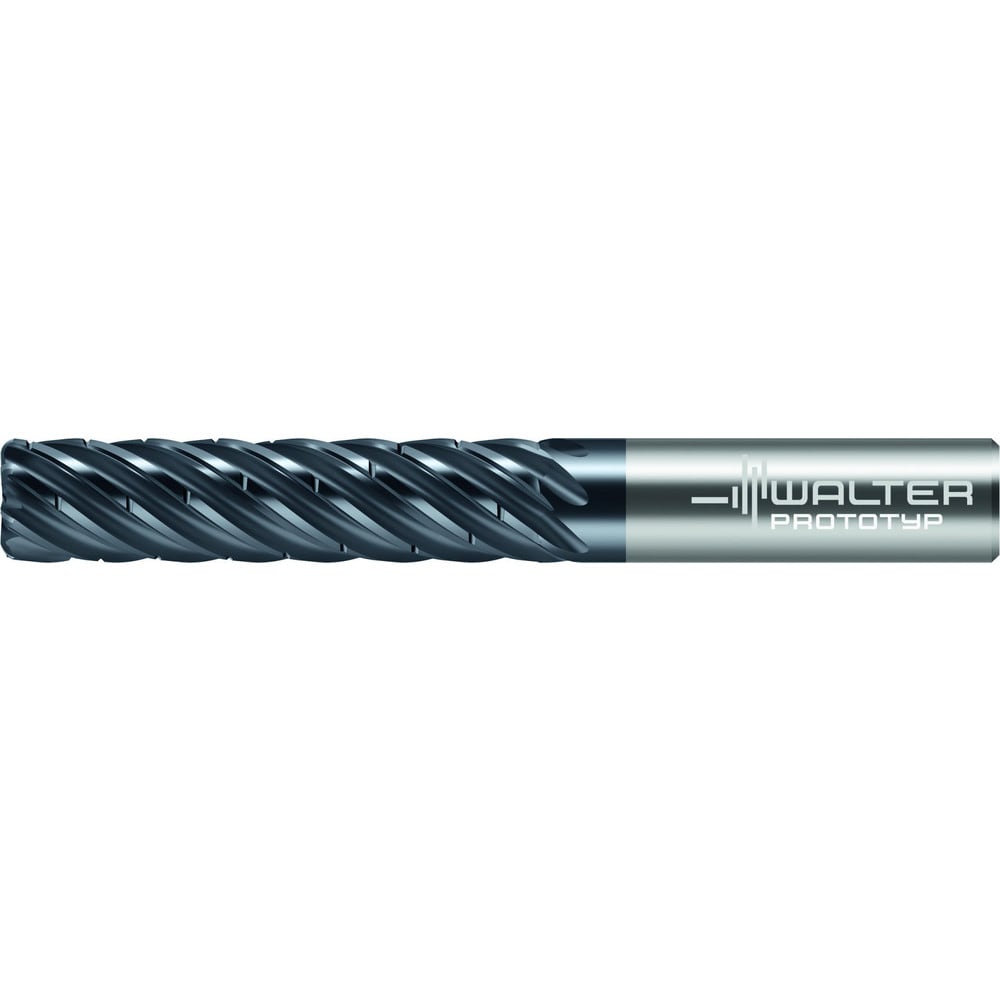

Corner Radius End Mill: 1" Dia, 1-1/2" LOC, 0.0600" Radius, 7 Flute, Solid Carbide
Item #: 75259853
Brand: Walter-Prototyp
Model #: 8418612
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 1-1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | nACo |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| End Type | Corner Radius |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.9134 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Series | MD173.A-7-R |
| Proprietary Coating Designation | WJ30EM |
| Manufacturers Catalog Number | MD173.25.4A7A152C-WJ30EM |
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 7 |
| Length of Cut (Inch) | 1-1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Chipbreaker | Yes |
| Coating/Finish | nACo |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0600 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| End Type | Corner Radius |
| Extended Reach | No |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.9134 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Superalloys & Titanium |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | S |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Series | MD173.A-7-R |
| Proprietary Coating Designation | WJ30EM |
| Manufacturers Catalog Number | MD173.25.4A7A152C-WJ30EM |
| MSC Part # | 75259853 |
| Mfr Part # | 8418612 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
