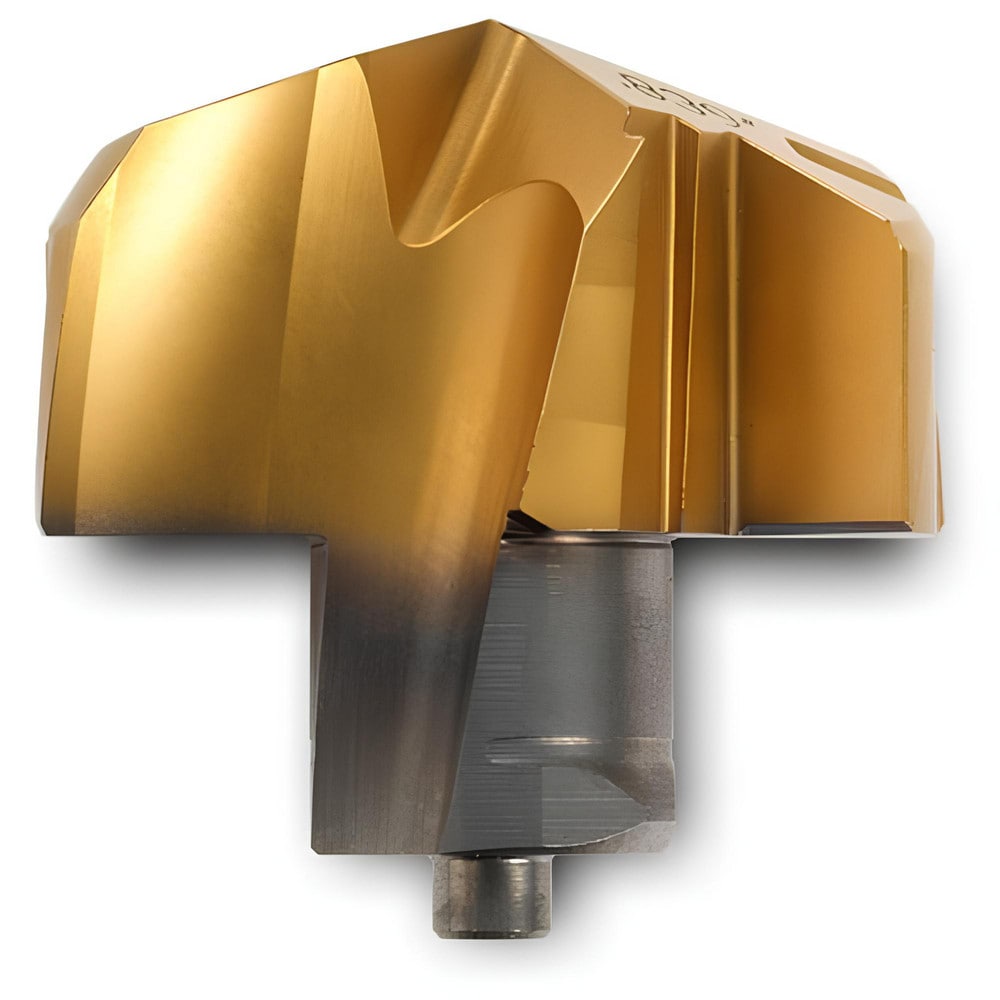

Brand: Ingersoll Cutting Tools / Part #: 4209907
Item #: 95298337
Brand: Ingersoll Cutting Tools
Model #: 4209907
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 0.5472 |
| Diameter (Decimal Inch) | 0.5472 |
| Point Angle | 140.00 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | IN2505 |
| Cutting Direction | Right Hand |
| Series | TKA |
| Coating Process | PVD |
| Insert Geometry | K |
| Insert Seat Size | 13.5 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Height (Decimal Inch) | 0.299000 |
| Overall Length/Projection (Decimal Inch) | 0.2990 |
| Head Length (Decimal Inch) | 0.2990 |
| Drill Point Angle | 140 |
| Flute Type | Helical |
| Insert Holding Method | Twist |
| ISO Number | TKA1390R01 IN2505 |
| Coolant Through | Yes |
| Cutting Diameter (Decimal Inch) | 0.5472 |
| Flute Length (mm) | 4.32 |
| Point Type | Spiral Point |
| Spiral Type | Regular |
| Style | TKA |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiN; TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
